• abstraction
• modularization
• object creation
• object diagrams
• method calls

• Abstraction is the ability to ignore details of parts to focus attention on a higher level of a problem

• Modularisation is the process of dividing a whole into well-defined parts, which can be built and examined separately, and which interact in well-defined ways

• Divide and conquer (divide et impera): divide the problem into sub-problems, then again into sub-sub-problems, and so on, until the individual problems are small enough to be easy to deal with

• The project we use is a display for a digital clock
• The display shows hours and minutes, separated by a colon
• Modularising the clock display
  • one four-digits display? ("11:03")
  • or two two-digits diaplay? ("11") ("03")
  • and a bit of glue? (":")

public class NumberDisplay
{
    private int limit;
    private int value;

    ... constructor omitted
    ... methods omitted
}

public class ClockDisplay
{
    private NumberDisplay hours;
    private NumberDisplay minutes;
    ... constructor omitted
    ... methods omitted
}

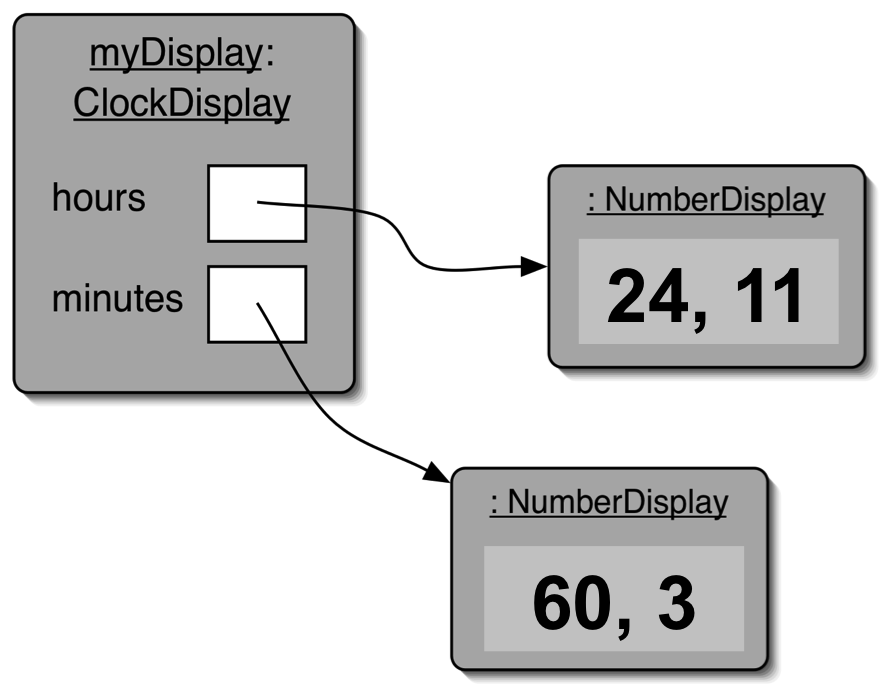

• The object diagram shows the objects and their relationships at one moment in time during the execution of an application
• It gives information about objects at runtime and presents the dynamic view of a program

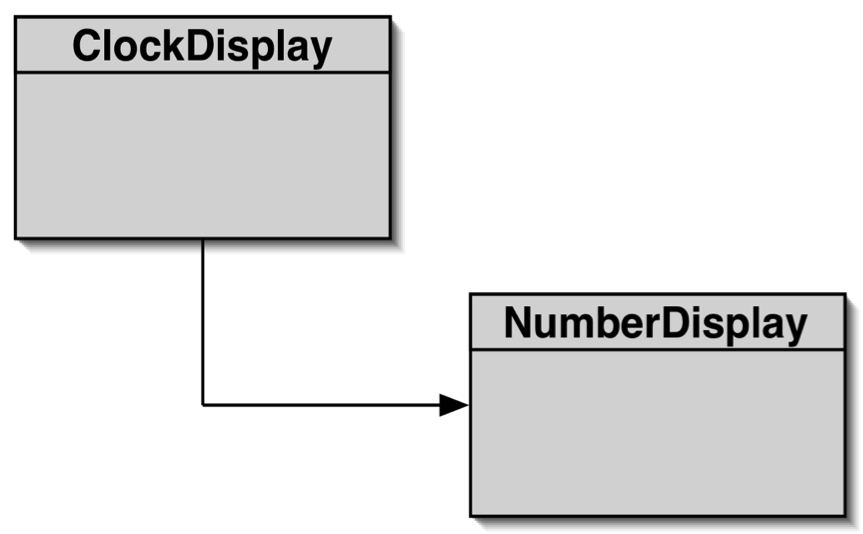

• The class diagram shows the classes of an application and the relationships between them.
• It gives information about the source code and presents the static view of a program.

• A class name can be used as the type for a variable
• Variables that have a class as their type can store objects of that class
• Object references. Variables of object types store references to objects.
• Class defines the set of values (fields) and the set of operations (methods) for the new type defined

  ---

• Primitive types (int, boolean, char, double, long ...) are the non-object types.
• Primitive types have no methods.

int a, b;
a = 42;
b = a;
a = a + 1;                 // has b changed?
System.out.println(b);

Person a, b;
a = new Person("Jack");
b = a;
a.changeName("John");    // has b changed?
System.out.println(b.getName());

public NumberDisplay(int rollOverLimit) {
    limit = rollOverLimit;
    value = 0;
}

public void increment() {
    value = (value + 1) % limit;
}

public String getDisplayValue() {
    if (value < 10) {
        return "0" + value;
    }
    else {
        return "" + value;
    }
}

public class ClockDisplay {
    private NumberDisplay hours;
    private NumberDisplay minutes;
    private String displayString;

    public ClockDisplay() {
        hours = new NumberDisplay(24);
        minutes = new NumberDisplay(60);
        updateDisplay();
    }

    private void updateDisplay() {
        displayString = hours.getDisplayValue() + ":" +
          minutes.getDisplayValue();
    }

... }

• External method call with dot notation
  • Calling a method on another object (only public methods)

objectName.methodName(parameterList);

• Internal method call
  • Calling a method on our own object (public and private methods)

methodName(argument);

• or

this.methodName(argument);

/**
 * Advance the time by one minute.
*/
public void timeTick() {
    minutes.increment();
    if(minutes.getValue() == 0) { // it just rolled over!
        hours.increment();
    }
    updateDisplay();
}

• null is a special Object in Java
• All Object variables (of any class) are initially null
• Variables can be tested to see if they are null
• Example:

private NumberDisplay hours;

public void makeHoursVisible() {
  if (hours == null) {
    ...  nothing to show
  } else {
    ...  display it
  }
}

• A class may contain more than one constructor, or more than one method of the same name, as long as each has a distinctive set of parameter types

/**
 * Constructor for ClockDisplay objects. This constructor
 * creates a new clock set at 00:00.
 */
public ClockDisplay() {
    hours = new NumberDisplay(24);
    minutes = new NumberDisplay(60);
    updateDisplay();
}
/**
 * Constructor for ClockDisplay objects. This constructor
 * creates a new clock set at the time specified by the parameters.
 */
public ClockDisplay(int hour, int minute) {
    hours = new NumberDisplay(24);
    minutes = new NumberDisplay(60);
    setTime(hour, minute);
}

• Change the clock from a 24-hour clock to a 12-hour clock. Be careful: This is not as easy as it might at first seem. In a 12-hour clock, the hours after midnight and after noon are not shown as 00:30, but as 12:30. Thus, the minute display shows values from 0 to 59, while the hour display shows values from 1 to 12!
• There are (at least) two ways in which you can make a 12-hour clock. One possibility is to just store hour values from 1 to 12. On the other hand, you can simply leave the clock to work internally as a 24-hour clock but change the display string of the clock display to show 4:23 or 4.23pm when the internal value is 16:23.
• Implement both versions.
  • Which option is easier?
  • Which is better?
  • Why?

• abstraction is the ability to ignore details of parts, to focus attention on a higher level of a problem.
• modularization is the process of dividing a whole into well-defined parts that can be built and examined separately and that interact in well-defined ways.
• classes define types: a class name can be used as the type for a variable. Variables that have a class as their type can store objects of that class.
• class diagram shows the classes of an application and the relationships between them. It gives information about the source code and presents the static view of a program.
• object diagram shows the objects and their relationships at one moment in time during the execution of an application. It gives information about objects at runtime and presents the dynamic view of a program.

• object references: variables of object types store references to objects.
• primitive types in Java are the non-object types. Types such as int, boolean, char, double, and long are the most common primitive types. Primitive types have no methods.
• object creation: objects can create other objects, using the new operator.
• overloading: a class may contain more than one constructor, or more than one method of the same name, as long as each has a distinctive set of parameter types.
• internal method call: methods can call other methods of the same class as part of their implementation.
• external method call: methods can call methods of other objects using dot notation.
